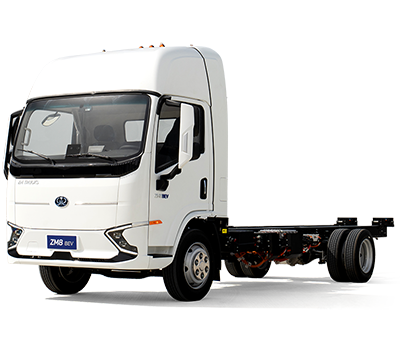

ZM8 BEV | ZM Trucks

THANK YOU FOR YOUR INTEREST IN ZM TRUCKS. FOR MORE INFORMATION, PLEASE SELECT THE APPROPRIATE CONTACT BELOW.

Specifications

WEIGHTS

	Class 5	Class 6
GVWR	19,500 lbs	19,510 lbs
PAYLOAD	11,750 lbs	11,760 lbs
REAR AXLE	13,670 lbs
FRONT AXLE	7,050 lbs
CHASSIS CURB WEIGHT (CW)	7,750 lbs
CHASSIS CURB WEIGHT REAR (CWR)	3,480 lbs

DIMENSIONS

CHASSIS/CAB LENGTH	328 in
WHEELBASE (WB)	177 in
HEIGHT (CAB)	116 in
WIDTH (CAB)	79 in
HEIGHT (TOP OF FRAME)	32 in
WIDTH (CHASSIS)	91 in
GROUND CLEARANCE (LOWEST POINT)	8 in
TURNING CIRCLE	59 ft

PERFORMANCE

RANGE	150 miles
TOP SPEED	65 mph
POWER (CONTINUOUS/PEAK)	150 / 270 hp
TORQUE (CONTINUOUS/PEAK)	170 / 330 lb/ft
TRACTION MOTOR LOCATION	REAR E-AXLE
ePTO #1	15 kW
ePTO #2	30 kW

CHASSIS

APPROACH ANGLE (FRONT)	19 degrees
DEPARTURE ANGLE (REAR)	11 degrees
BRAKE SYSTEM	HYDRAULIC
BRAKE TYPE (F/R)	DISC/DISC
SAFETY FEATURES	ABS/ABD/ESC TPMS/PDW
ADAS FEATURES	AEB/LDW
FRONT SUSPENSION	LEAF
REAR SUSPENSION	LEAF
TIRE SIZE	225/70 R19.5

HIGH VOLTAGE

HV BATTERY CAPACITY	131 kWh
HV BATTERY VOLTAGE	600 V
AC LEVEL 2 CHARGE 20%-100%	6 hrs @ 20 kW
DC FAST CHARGE 20%-80%	40 min @ 140 kW
HV BATTERY LOCATION	INSIDE FRAME
CHARGE CONNECTION	CCS1

CAB

LOW VOLTAGE NOMINAL	24 V
HEATING CAPACITY	3,000 W
COOLING CAPACITY	4,500 W
AC REFRIGERANT	1234YF
CRUISE CONTROL	STD
SEATING	2
DRIVER SEAT ADJUSTMENT	4 WAY
PASSENGER SEAT ADJUSTMENT	2 WAY
REARVIEW CAMERA	STD
REARVIEW MIRRORS HEATED	STD
REARVIEW MIRRORS ELEC. ADJUST	STD
HEADLIGHTS	LED
EXTERIOR LIGHTS	LED
INFOTAINMENT	AM, FM, BLUETOOTH, USB-A
DASHBOARD SCREEN SIZE	7 in
INFOTAINMENT SCREEN SIZE	12.3 in

UPFITTER

FRONT AXLE TO BACK OF CAB (AC)	21 in
FRONT BUMPER TO FRONT AXLE (BA)	44 in
FRONT BUMPER TO BACK OF CAB (BBC)	65 in
CARGO BODY LENGTH (FROM/TO) (BL)	18 – 22 ft
CAB TO AXLE (CA)	156 in
CAB TO BODY CLEARANCE (CB)	4 in
